200watt monocrystalline Solar Panel 14 Busbar cells

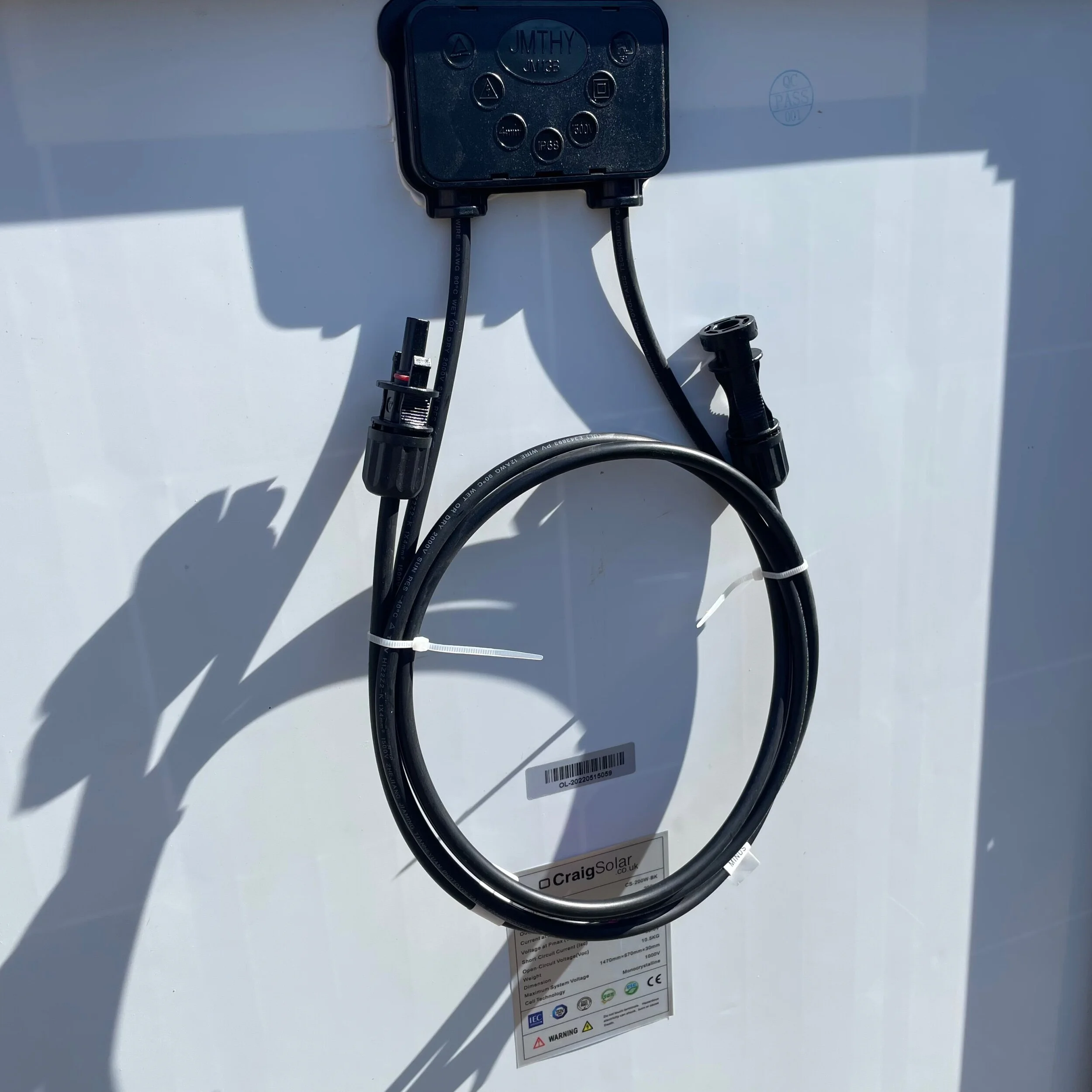

High Quality and Outstanding performance. Now with 14 busbar German cells, decrease ohmic losses and increase the yield. 3.2mm Tempered safety glass for optimal mechanical stability and transparency. Anodised quality aluminum alloy frame with pre-drilled holes on reverse. 90cm output cable (4mm2) and MC4 plugs attached. Each solar panel has been individually tested. Bypass Diode in IP65 junction box used to protect partially shaded photovoltaic cells.

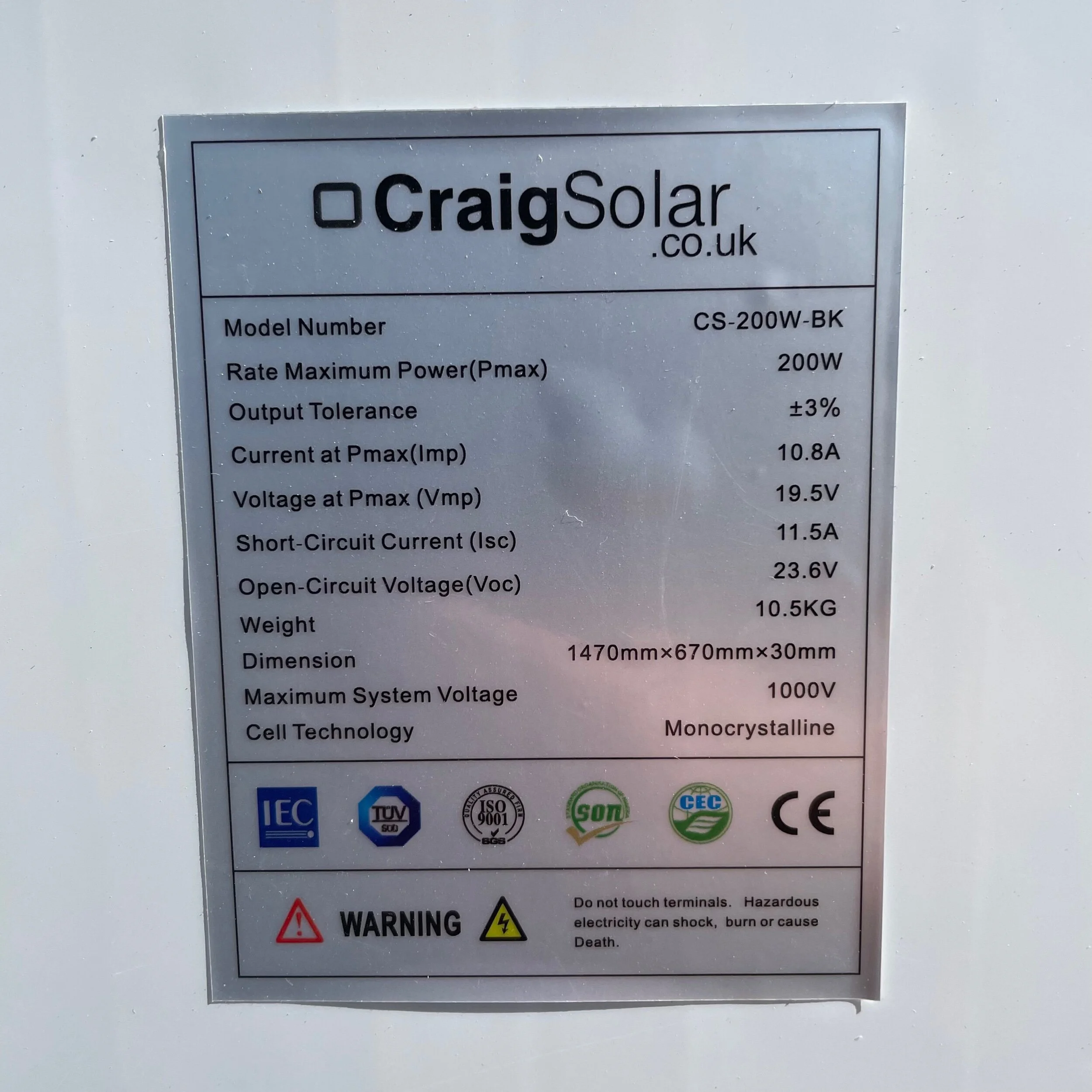

Specifications

• Max Current (Imp) 10.8A

• Max Voltage (Vpm) 19.5V

• Short Circuit Current (Isc) 11.5A

• Open Circuit Voltage (Voc) 23.6V

• Weight 10.5Kg

• Dimension 147x67x3cm

• Certified CE & TUV

• Warranty 25 years
